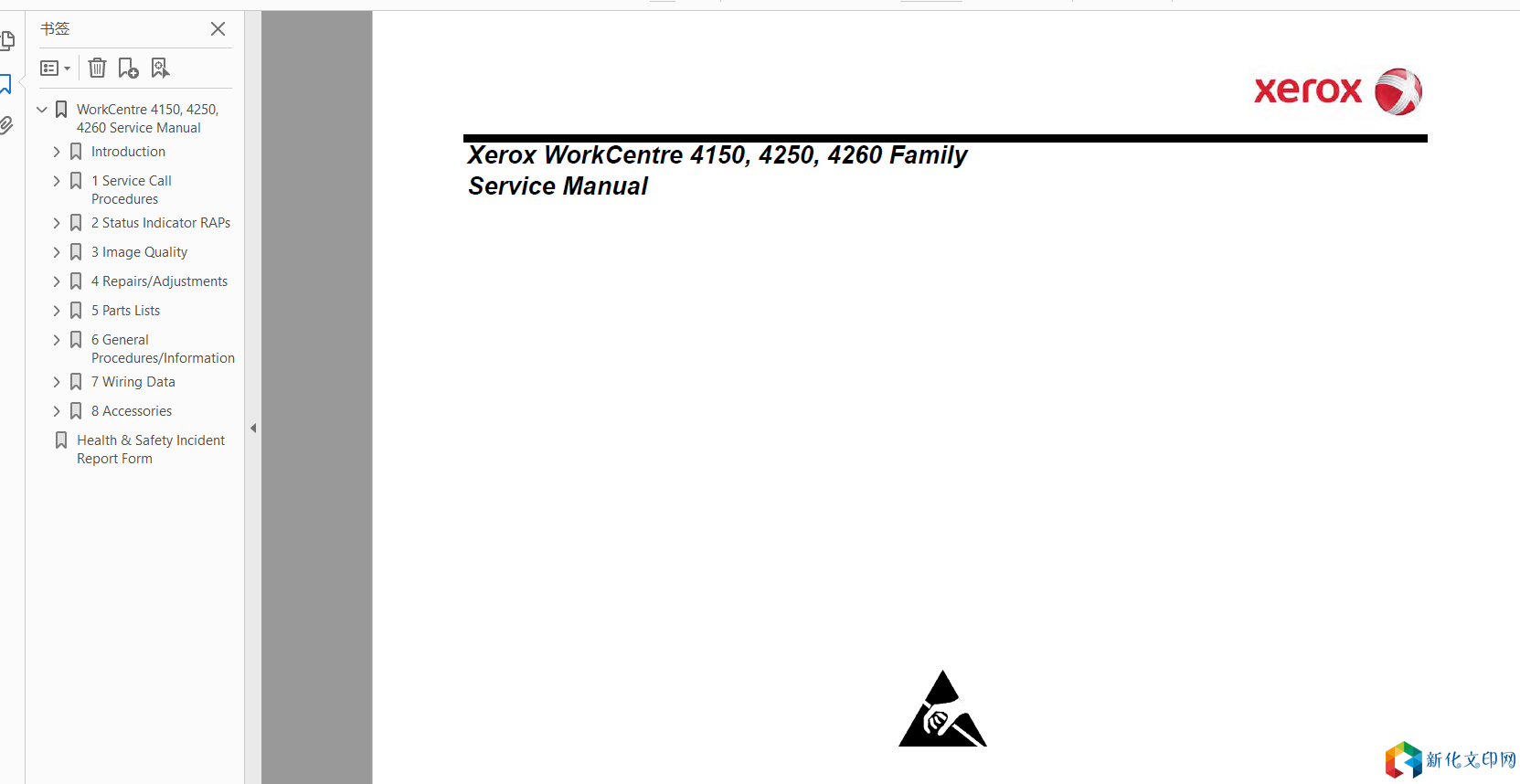

Xerox WorkCentre 4150, 4250, 4260 Family
Service Manual

Switch off the electricity to the machine. Disconnect the power cord from the customer supply while performing tasks that do not need electricity. Electricity can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
Installing the Foreign Device Inte**ce
1. Unpack the components of the foreign device inte**ce kit.
2. If necessary, disconnect the finisher harness and the network cable.
3. If necessary, remove the fax module, PL 1.15 Item 14.
NOTE: Leave the fax cable connected to the fax module.
4. Remove the infill cover, PL 1.15 Item 19.
5. Carefully remove the foreign device inte**ce push-out from the infill cover, Figure 4.
